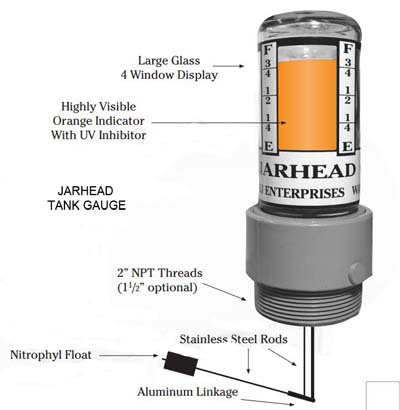

JARHEAD TANK GAUGE

Reads in 1/4's

The perfect new gauge or replacement gauge for your tank. Nice fuel level display!

FEATURES:

• Large Glass Easy To Read 4 Window Display
• Highly Visible Bright Orange Indicator With UV Inhibitor
• 2" NPT Threads (1 1/2" available-Contact Us)
• Stainless Steel Rods
• Aluminum Linkage
• Nitrophyl Float
• Easy Installation
• Sight glass markings in E, 1/4, 1/2, 3/4, and Full-tank increments
• Available for Standard Vertical and Horizontal Tanks
• Custom
  lengths from 12" - 120"
  (457.2 - 3048 mm) CONTACT US
• Models constructed from materials 100% compatible with Diesel Exhaust Fluid (DEF) are available-CONTACT US.
• Made in U.S.A.

Order #7620

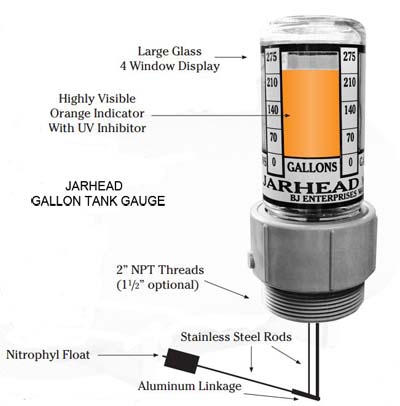

JARHEAD GALLON TANK GAUGE

Reads in 70 Gallon Increments

The perfect new gauge or replacement gauge for your tank. Nice fuel level display in gallons!

FEATURES:

• Large Glass Easy To Read 4 Window Display
• Highly Visible Bright Orange Indicator With UV Inhibitor
• 2" NPT Threads (1 1/2" available-Contact Us)
• Stainless Steel Rods
• Aluminum Linkage
• Nitrophyl Float
• Easy Installation
• Sight glass markings in 70 gallon increments
• Available for Standard Vertical and Horizontal Tanks
• Custom
  lengths from 12" - 120"
  (457.2 - 3048 mm) CONTACT US
• Models constructed from materials 100% compatible with Diesel Exhaust Fluid (DEF) are available-CONTACT US.
• Made in U.S.A.

Order #7625

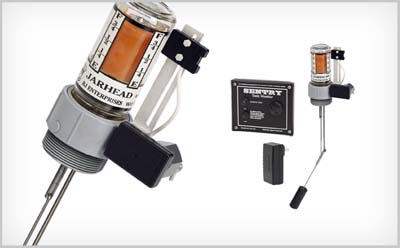

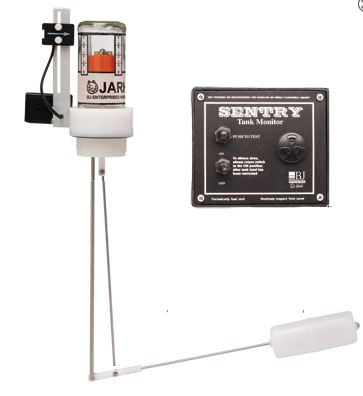

Jarhead with Sentry Audible Tank Alarm Options:

12 Volt or Battery Operated Audible Tank Alarm Models for Remote Tank Monitoring

Sentry Audible Alarm Tank Monitor, with 12-volt transformer and sightglass tank gauge with fractional indicators for 12" - 120" tank depth with 2" NPS connection.

Sentry Audible Tank Alarm Includes indoor/outdoor mount control panel, Jarhead Tank Gauge and 12 volt transformer

▪ Wall mount tank monitor
can be installed up to
350 feet from tank.

▪ Built-in 103 decibel siren.

▪ Tank monitor includes a
push button test switch.

▪ Toggle switch to silence
the siren.

• Standard Vertical and Horizontal Tank Sizes Available see ORDER INFO
• Custom lengths from 12" - 120" (457.2 - 3048 mm) also available CONTACT US
• Tank gauge constructed from materials 100% compatible with Diesel Exhaust Fluid (DEF).
• Made in U.S.A.

Order #7686

Need a BATTERY POWERED Model?

Order #7685 Battery Operated Model- same model as described above, except BATTERY OPERATED (Ideal For Remote Areas Where AC Power is Not Accessible) Alarm Sounds Up to 4 Days On a Fresh Battery!

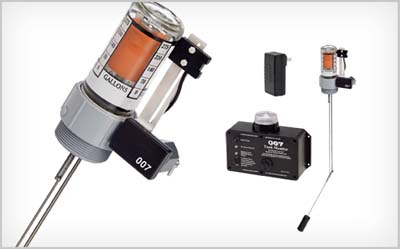

Jarhead with 007 Tank Alarm Option:

007 Audible and Visual Tank Alarm
